Description

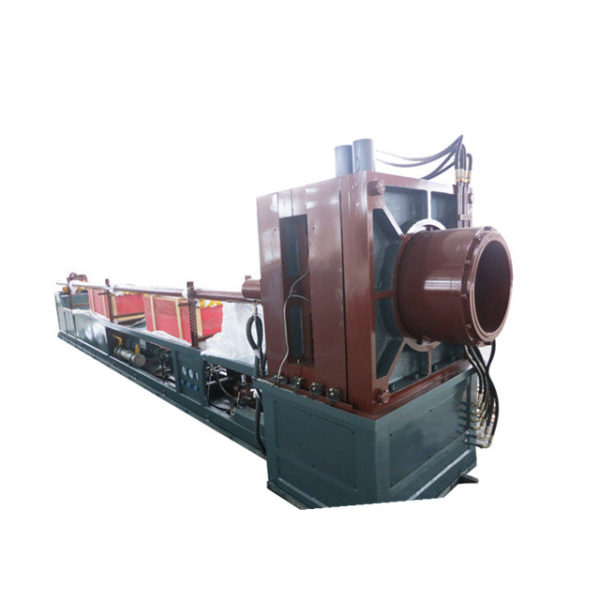

 Metal hose hydraulic forming machine

---

MAIN PARAMETER

• Normal size range: DN25-100, DN50-300, DN200-600
• No. of layers: single / double layers.
• Application of the hose: water hose, oil hose, steam hose and etc…
• Forming speed: 2.5-3.5m / min
• Material: sus304, 321 and 316L and etc…
• Machine dimension: 15000 x 1100 x 1700.
• Control: PLC control
• Forming medium: emulsified liquid



MAIN MODEL OF HYDRAULIC FORMING MACHINE

1. YKCX―65C

ID range: Ф16―Ф55mm;

Thickness range: δ≤0.14×2―0.30×2mm;

Length range: L≤1000mm;

2. YKCX―100A

ID range: Φ25―Φ100mm

Thickness range: single layer 0.4―0.8mm Double layer: 0.25×2―0.6×2mm

Length range: L≤6000mm

3. YKCX―150A

ID range: Φ32―Φ159mm

Thickness range: single layer 0.4―1.2mm Double layer 0.25×2―0.8×2mm

Length range: L≤7000mm

4. YKCX―300C

ID range: Φ50―Φ300mm

Thickness range: single layer 0.4―1.5mm Double layer 0.25×2―1.0×2mm

Length range: L≤7000mm

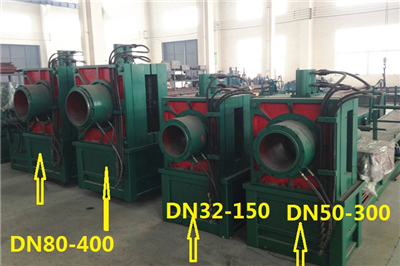

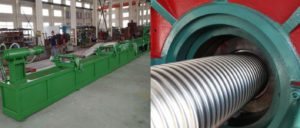

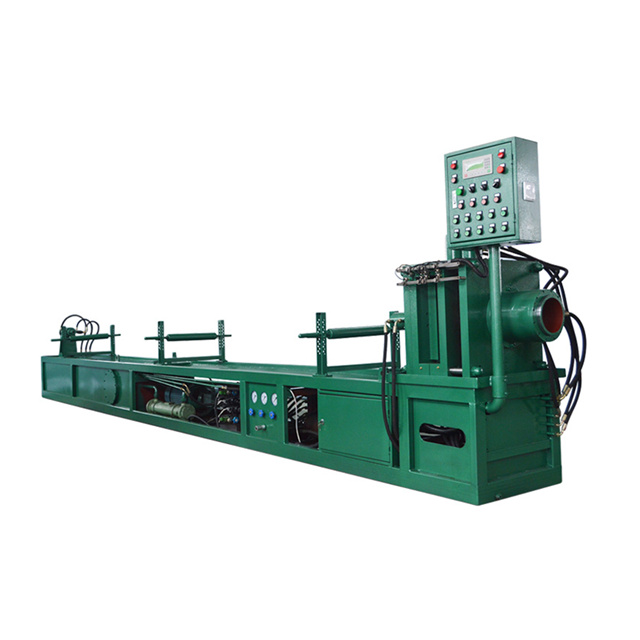

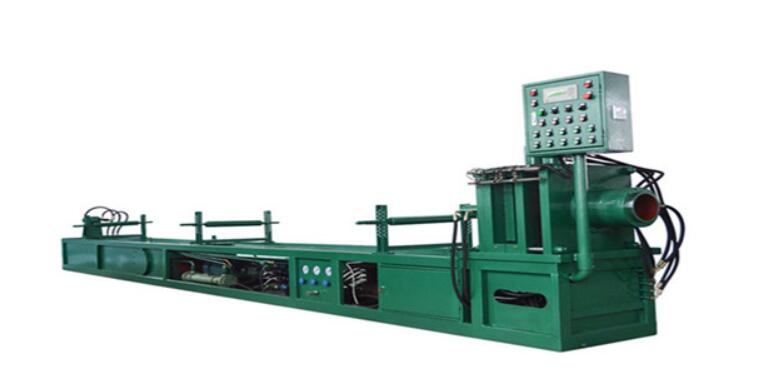

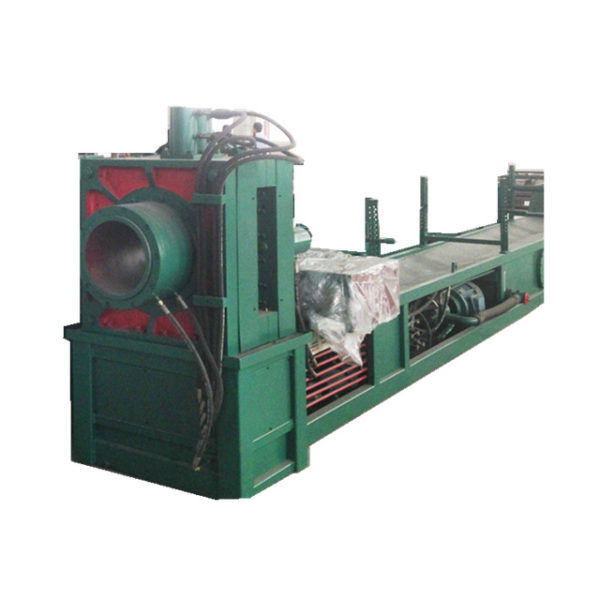

Picture of machine

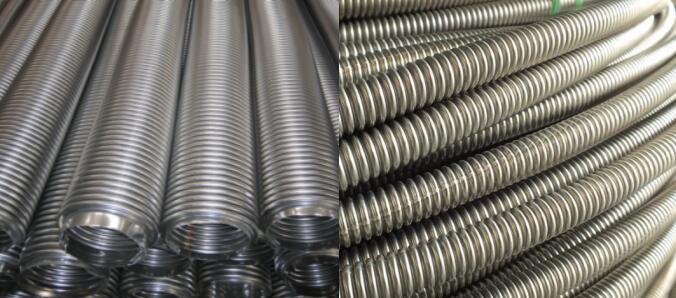

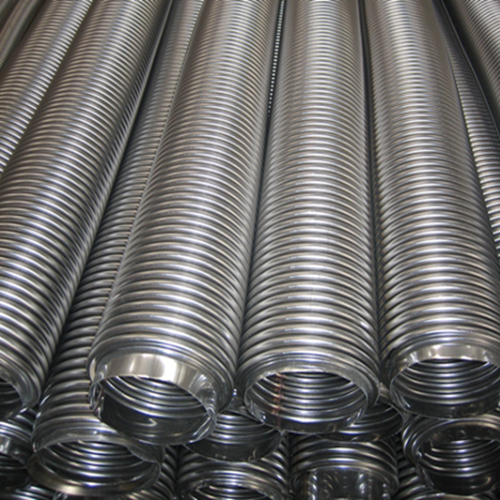

PRODUCTS FROM THE MACHINE

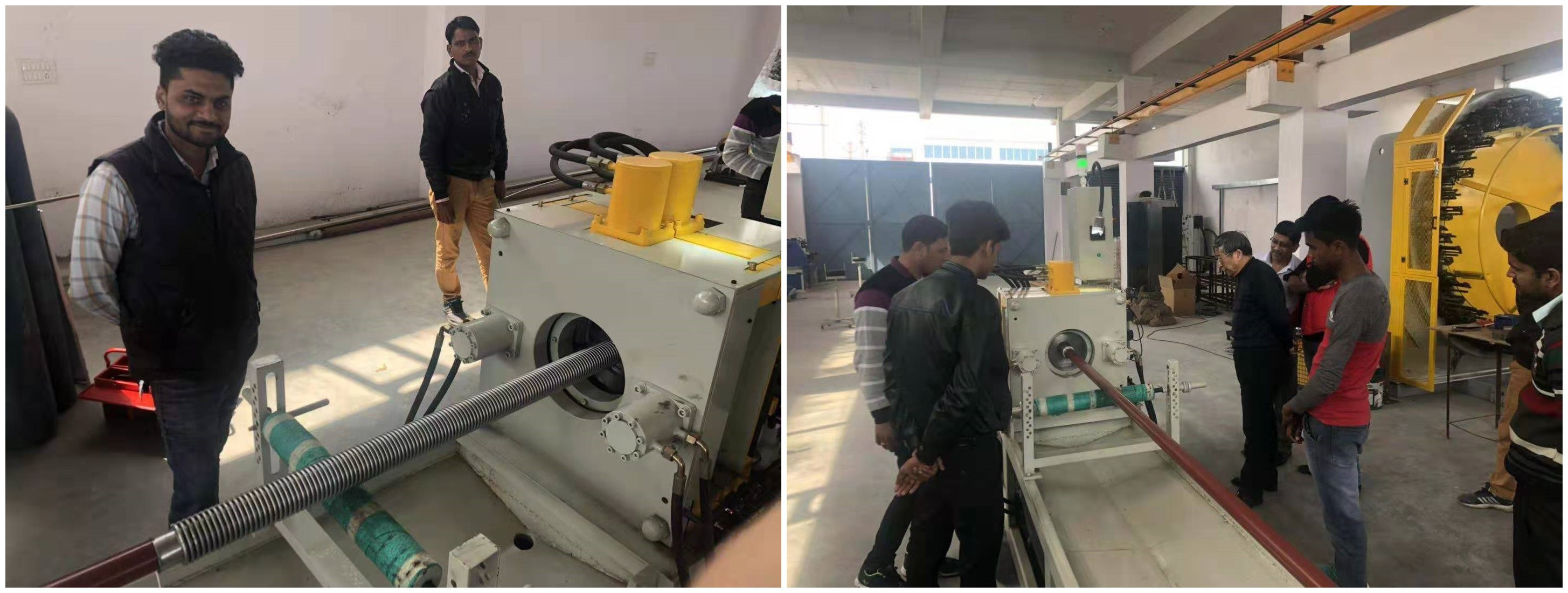

FIELD SERVICE
