Description

Mechanical Rolling&Forming Machine

---

MAIN PARAMETER

• Size: DN800-100000mm
• Pitch: 60-100mm
• Height of convolutions:50-150mm
• Wall thickness: 6mm
• Power Supply:380V,50Hz, three phases
• Number of Convolutions: 8 Forming
• Method: Mechanical Rolling & Forming
• Driving type: Motorized

TWO TYPES OF ROLLING&FORMING MACHINE

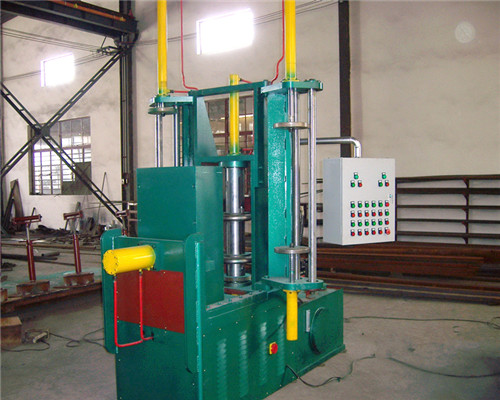

Mechanical Bellow Rolling & Forming Machine
Size I	Mini.diameter:	DN800
	Max. diameter:	DN5000
	Height of convolution:	Max.240mm
	Pitch distance:	Max.60mm
	Wall thickness:
	Single layer	Max.4mm
	Multilayer	Max.6mm
Size II	Mini.diameter:	DN1100
	Max. diameter:	DN10000
	Height of convolution:	Max.240mm
	Pitch distance:	Max.60mm
	Wall thickness:
	Single layer	Max.4mm
	Multilayer	Max.6mm

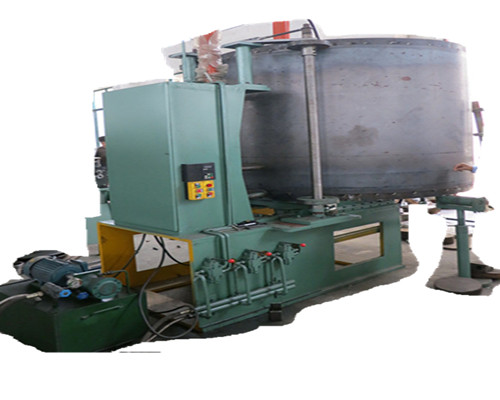

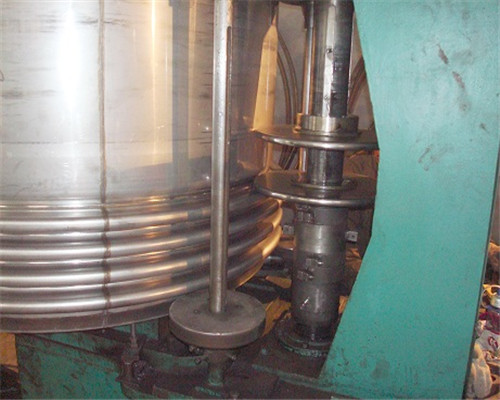

Details of the machine

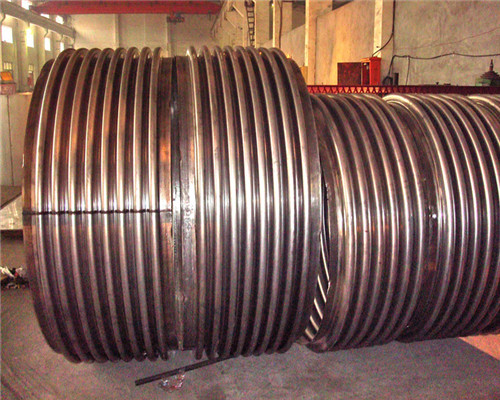

Products from the machine
