Description

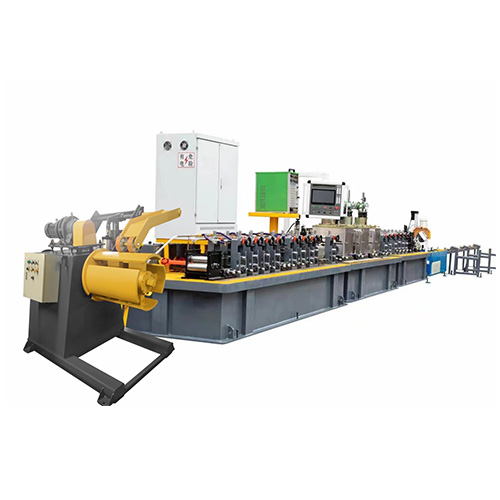

| Tube making type | Online continuous straight seam welding |
| Material standard | Titanium alloy, Austenitic stainless steel |
| Size | ODФ8—Ф40mm |
| Pipe thickness: | Ф0.3mm–1.5mm |
| Unit design operating speed: | 5m–12m/min (Adjust the speed according to the actual production situation) (Bright annealing of Ф6 or above 5-6 meters per minute) |
| Steel strip specifications | A: Steel strip ID:Ф420-520mm |
| B:Steel strip OD: Below Ф1600mm | |
| C:Steel strip width: MAX. 120mm | |
| D:Steel strip weight: Below 1T | |
| Tube length | Tube cutting length≤1.5 M–6M |
| Internal weld line | No need |
| External weld line | Need to be polished online |
| Online bright solid solution | Online bright annealing equipment（80KW） |
| Flaw detection function | Customer selection |
| Main voltage of production line | 380V±5%V/3 50HZ±3%HZ |
| Production control voltage | 220V±5%V/2 50HZ±3%HZ |
| Operation direction | To be determined |
| Unit color | To be determined |
