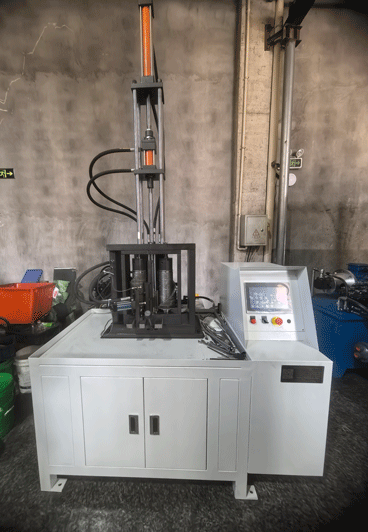

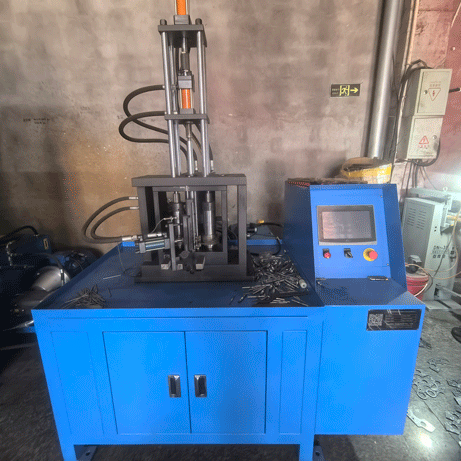

Our Vertical Bellow Forming Machine is a highly efficient, one-step forming solution designed for the production of precision bellows with excellent dimensional consistency and stable quality. It is widely used for manufacturing molded bellows components in applications that require high accuracy, repeatability, and reliable performance.
Machine Capabilities
The Vertical Bellow Forming Machine is designed to manufacture bellows with an inner diameter (ID) ranging from 4 mm to 60 mm, covering most standard industrial requirements.
For projects requiring larger diameters or special structures, we are fully capable of providing customized solutions. In such cases, our engineering team will carefully review the technical drawings, dimensional tolerances, and application requirements to evaluate feasibility and optimize the machine configuration accordingly.
With extensive experience in customized forming equipment, we support both standard and non-standard bellows designs, ensuring flexibility for diverse customer needs.
Production Efficiency
Production output depends on factors such as product diameter, length, material properties, mold structure, and overall product complexity. Based on our extensive manufacturing experience, typical production rates are as follows:
-
ID 4 mm – 15 mm: up to 180–360 pcs/hour
-
ID 16 mm – 30 mm: up to 120–180 pcs/hour
-
ID 31 mm – 60 mm: up to 60–120 pcs/hour
- https://youtube.com/shorts/geBYFlA1ocw
Please note that actual production capacity is evaluated case by case, ensuring realistic output estimates aligned with your specific product design and performance requirements.
Key Machine Features
Our Vertical Bellow Forming Machine integrates advanced technology to ensure high productivity, precision, and user-friendly operation:
-
High-Precision Forming Technology
Advanced vertical forming mechanisms ensure uniform wall thickness, accurate corrugation geometry, and excellent repeatability across batches. -
Automated Control System
Equipped with an intuitive automated control system, the machine enables easy operation, stable parameter control, and reduced dependency on manual intervention—minimizing human error while improving production consistency. -
Customizable Mold System
A wide range of mold options is available. Molds can be fully customized according to customer drawings, allowing flexibility in corrugation pitch, height, length, and special structural requirements.
Reliable Solution for Bellows Manufacturing
Designed with durability, precision, and adaptability in mind, our Vertical Bellow Forming Machine is an ideal choice for manufacturers seeking stable output, flexible customization, and long-term operational reliability.
If you have special bellows designs or non-standard requirements, feel free to share your drawings and technical specifications—our engineering team will be glad to support you with a tailored solution.
