Description

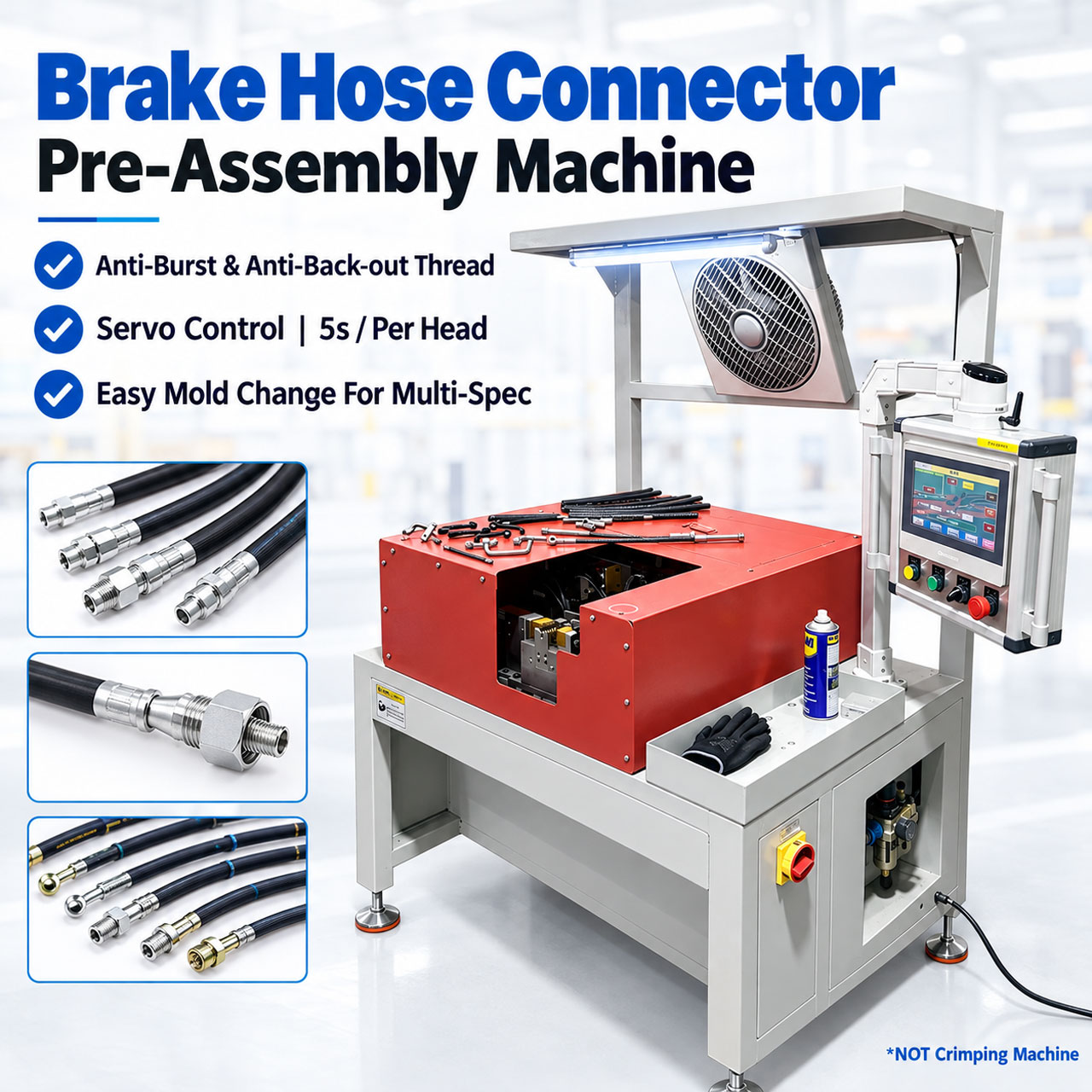

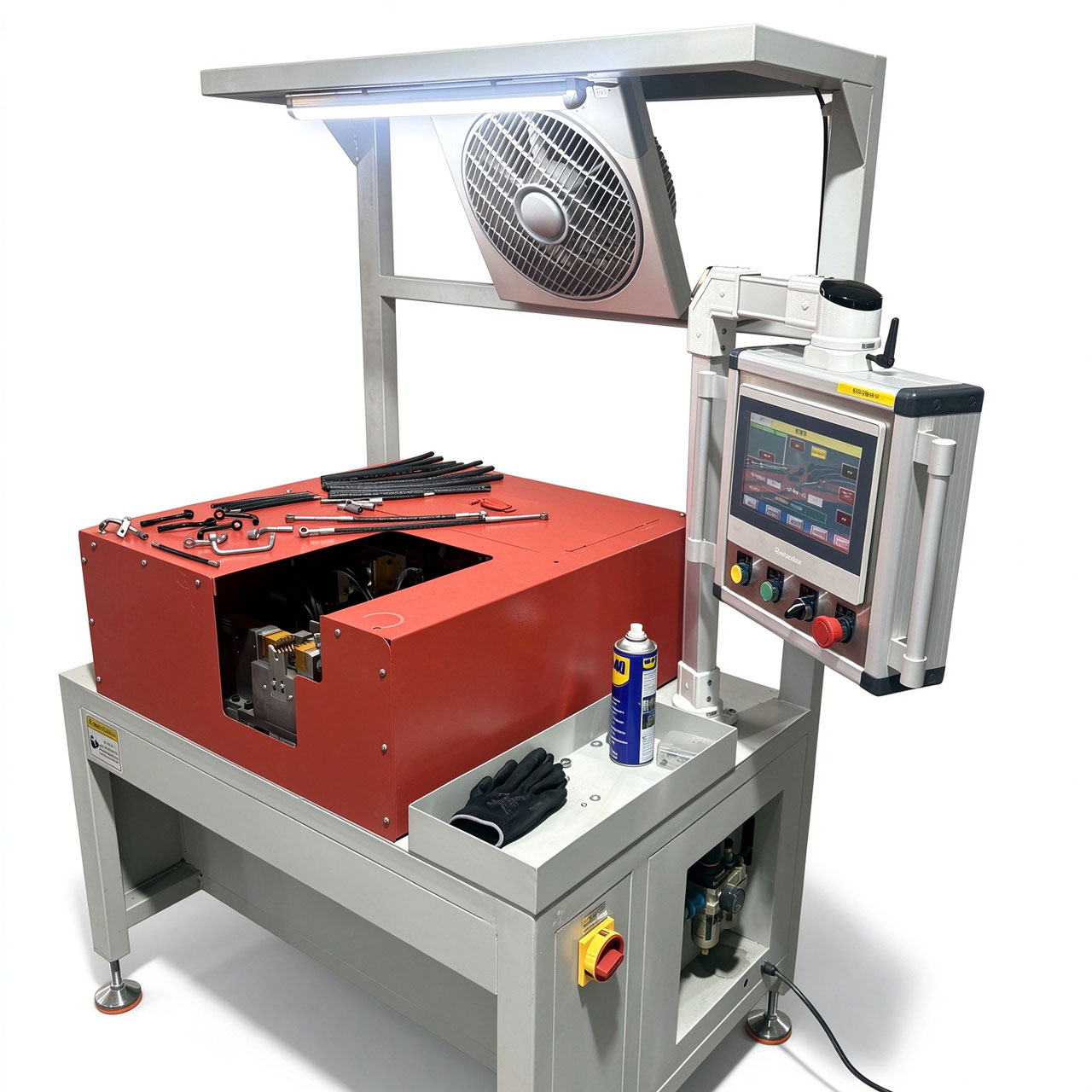

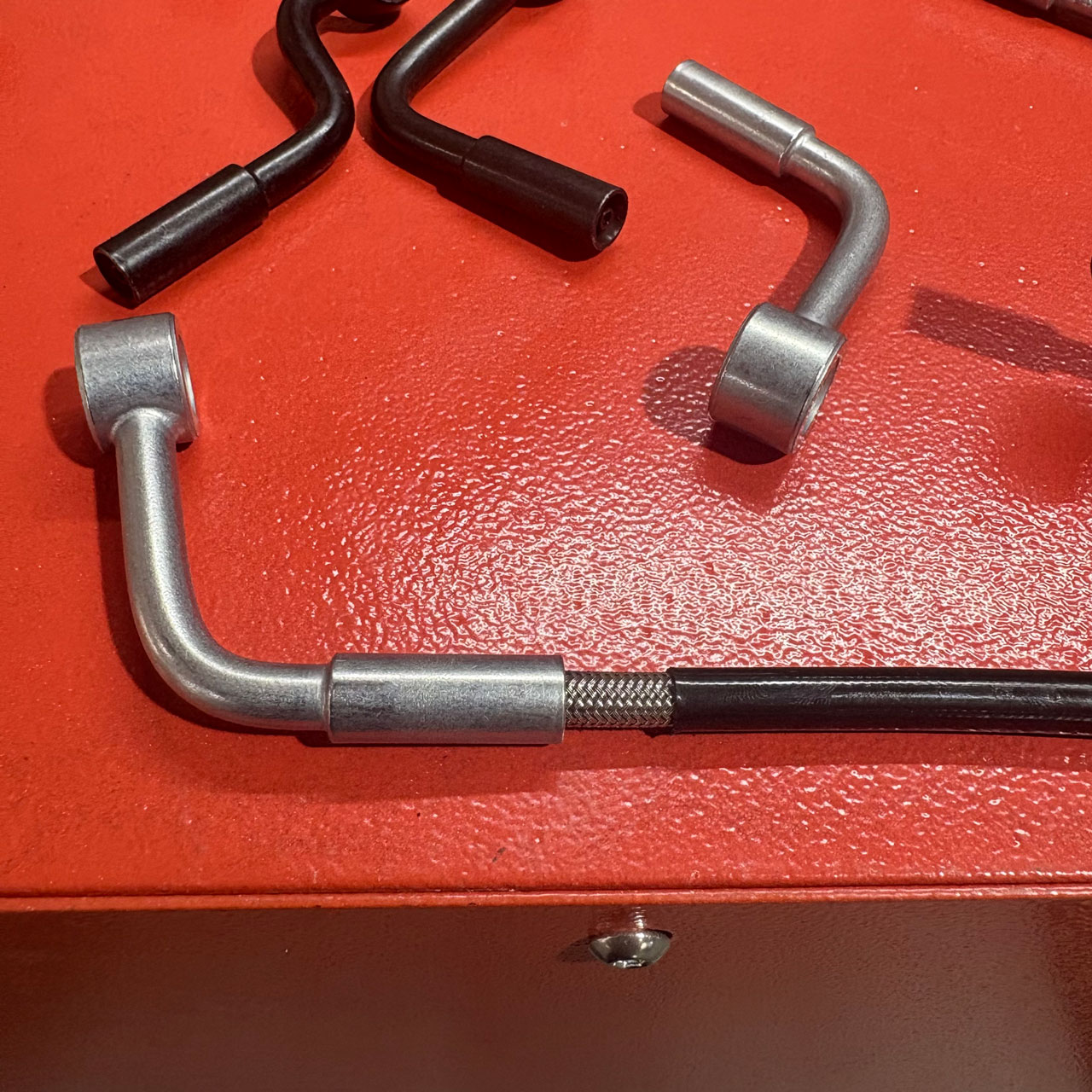

The Brake Hose Fitting Assembly Machine is designed for fitting assembly applications involving motorcycle brake hoses, disc brake hoses, and electric vehicle brake hoses.

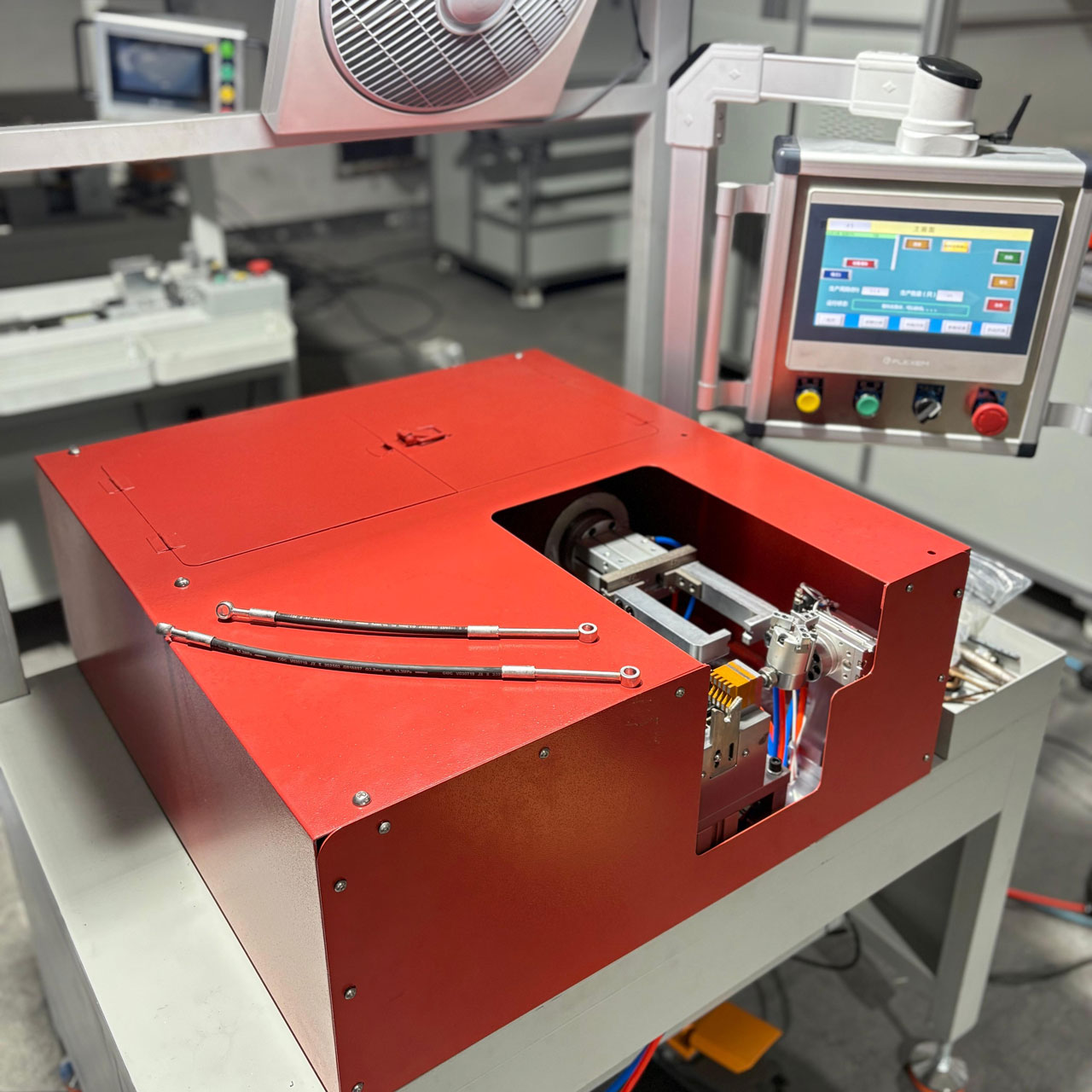

The machine combines manual workpiece loading with automatic machine-assisted assembly. It features PLC touch screen control, servo motor drive, adjustable movement settings, and a specialized twisting assembly mechanism.

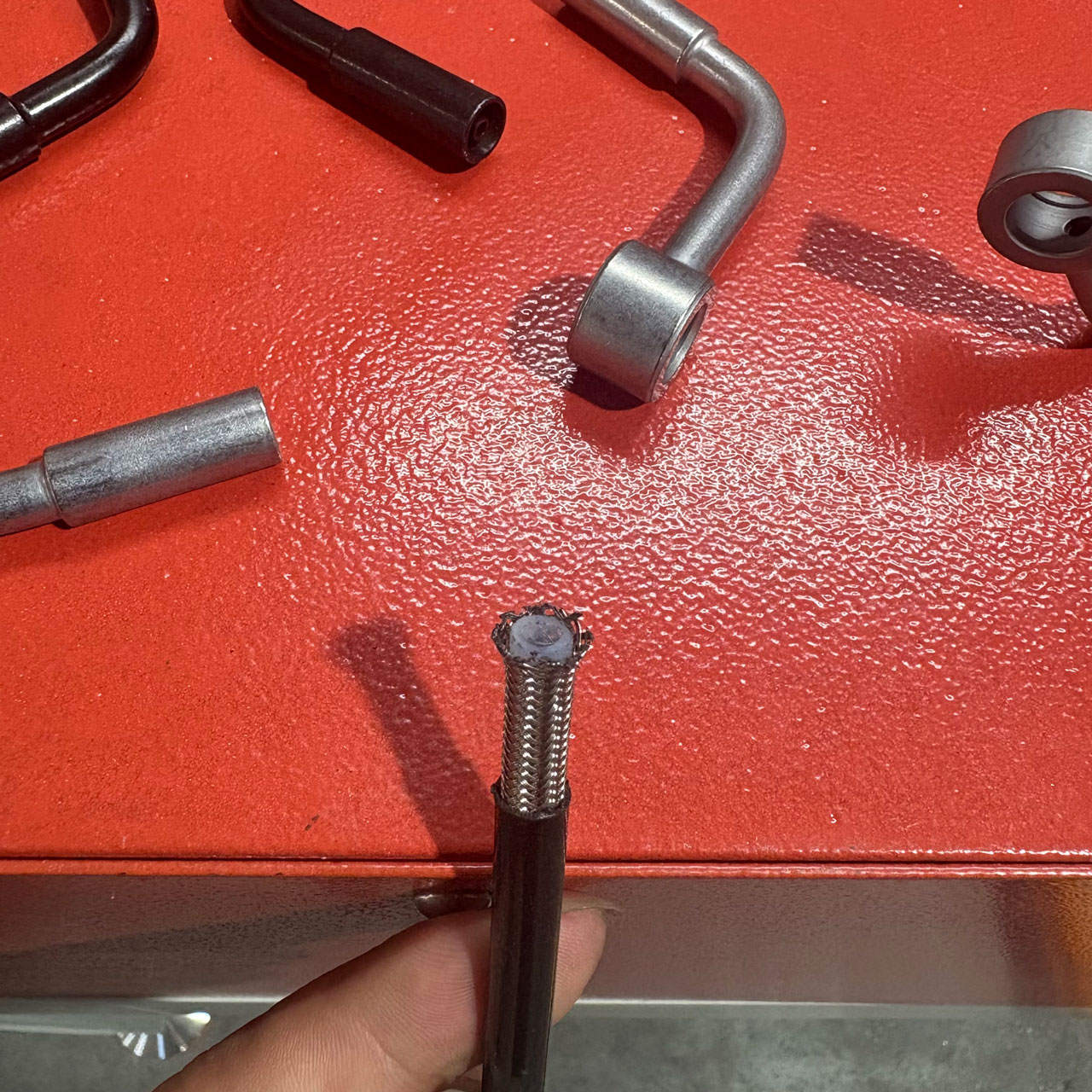

Replaceable tooling and adjustable pickup positions help accommodate different product requirements. The machine is designed to help improve fitting installation consistency and address common assembly issues such as thread back-out and hose reinforcement wire damage. Actual performance depends on the workpiece and tooling configuration.
Technical Specifications
| Item | Specification |
|---|---|
| Model | JR-JTZPJ |
| Operation Mode | Manual Loading, Automatic Assembly |
| Control System | PLC and Touch Screen |
| Drive System | Servo Motor |
| Assembly Mechanism | Twisting Assembly Mechanism |
| Rated Power | 3 kW |
| Operating Voltage | 220 V |
| Frequency | 50–60 Hz |
| Working Pressure | 0.4–0.8 MPa |
Main Features
- PLC touch screen control
- Servo-driven assembly movement
- Adjustable rotation angle and movement speed

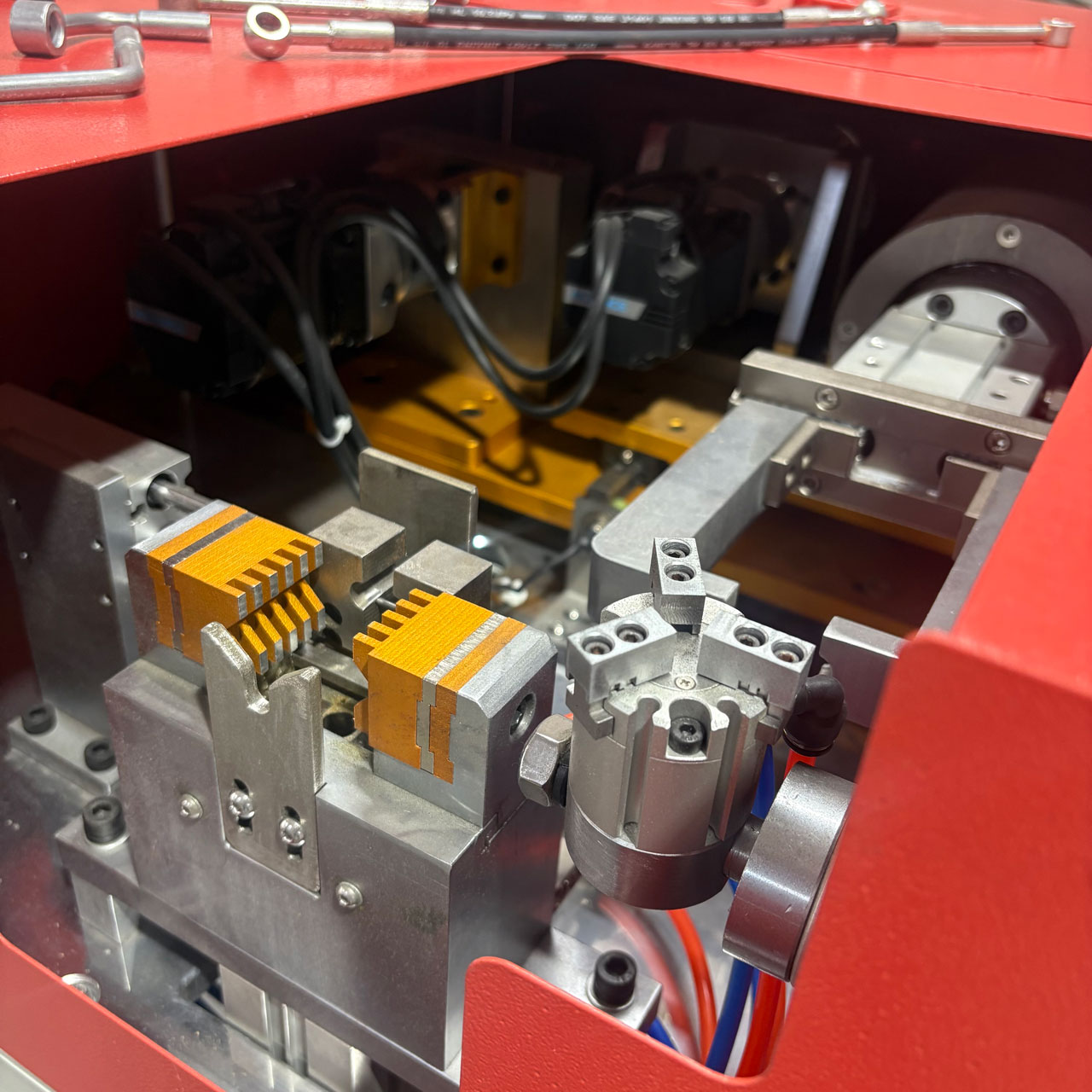

- Specialized twisting assembly mechanism

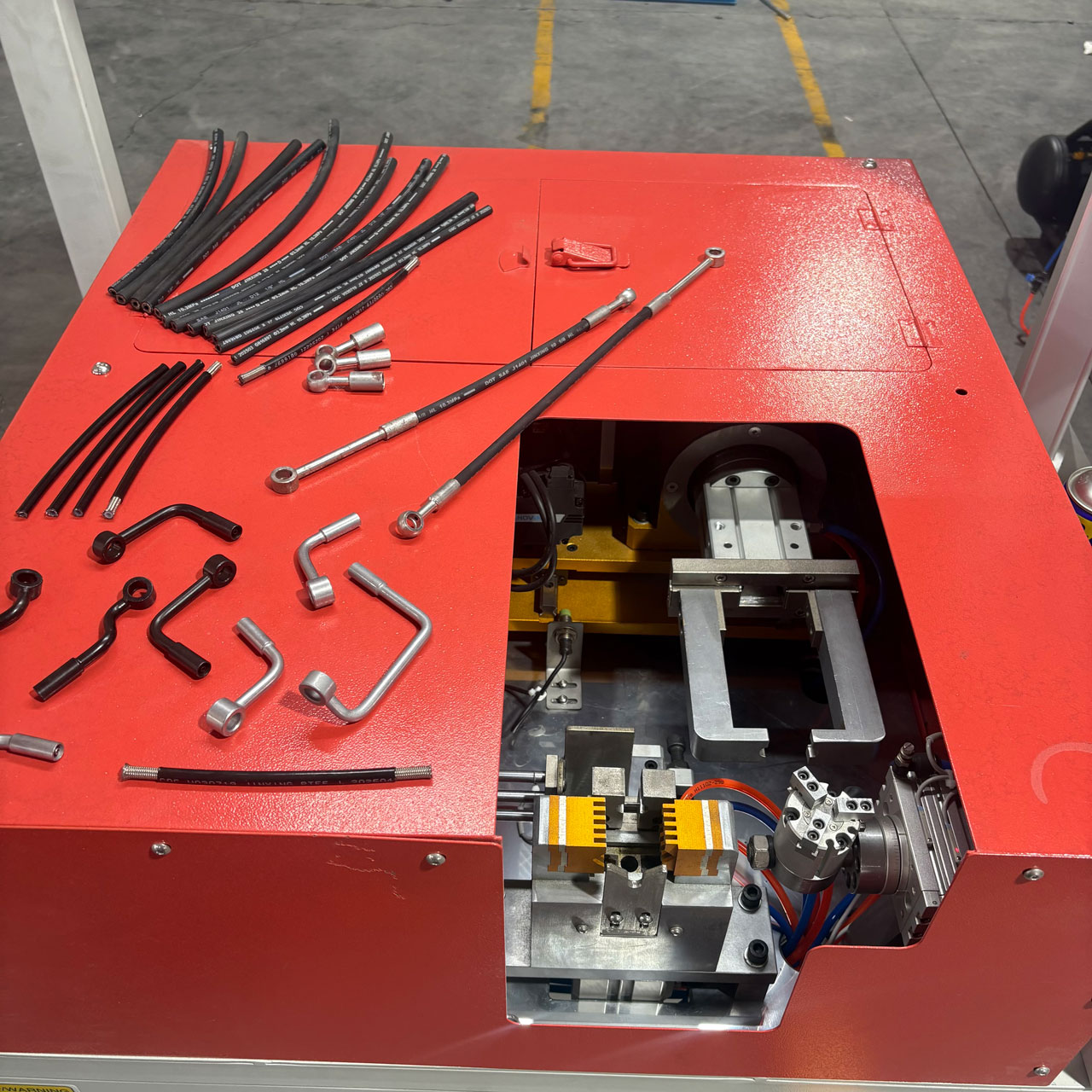

- Replaceable tooling for different hose sizes
- Adjustable workpiece pickup and positioning
- Manual loading with automatic assembly operation
