Description

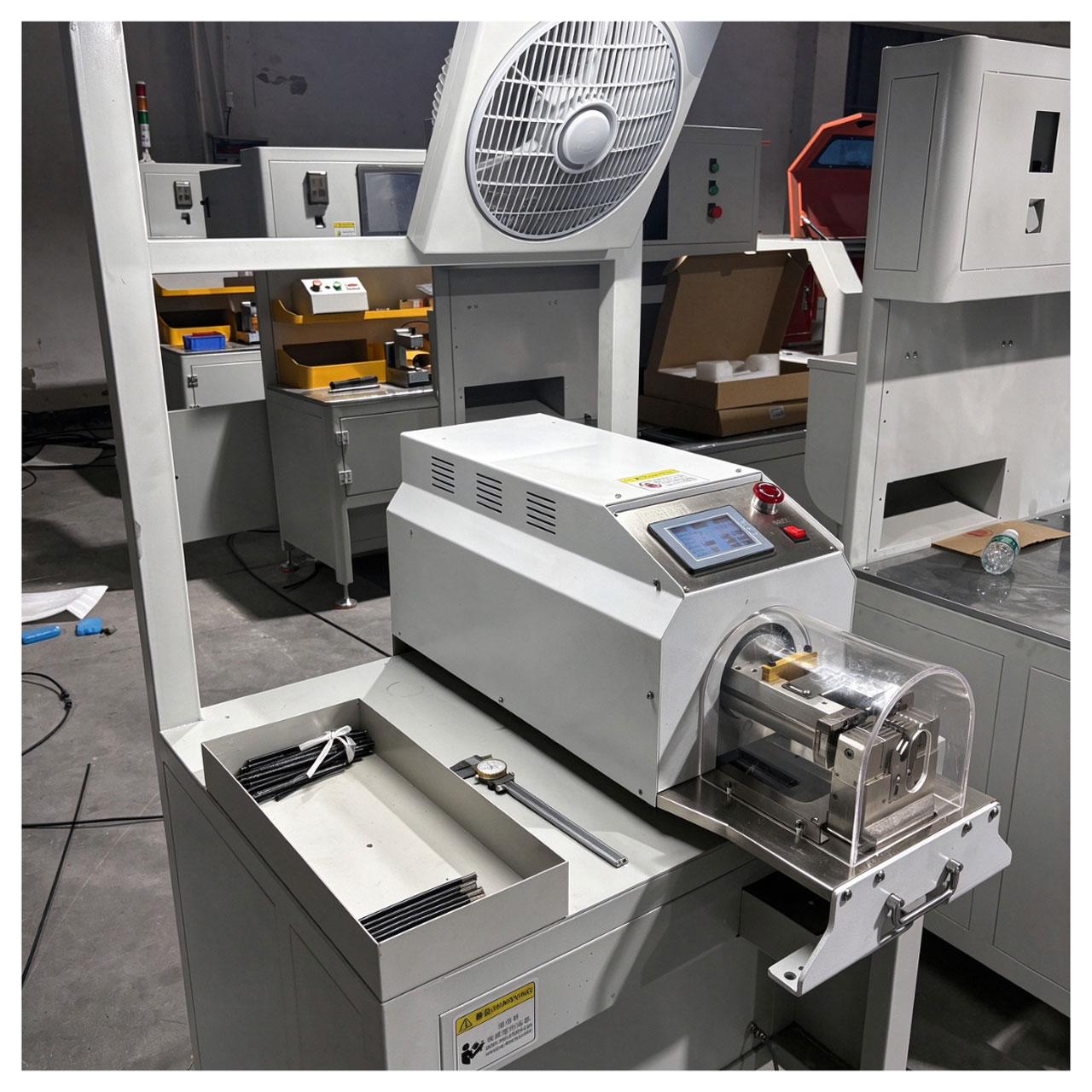

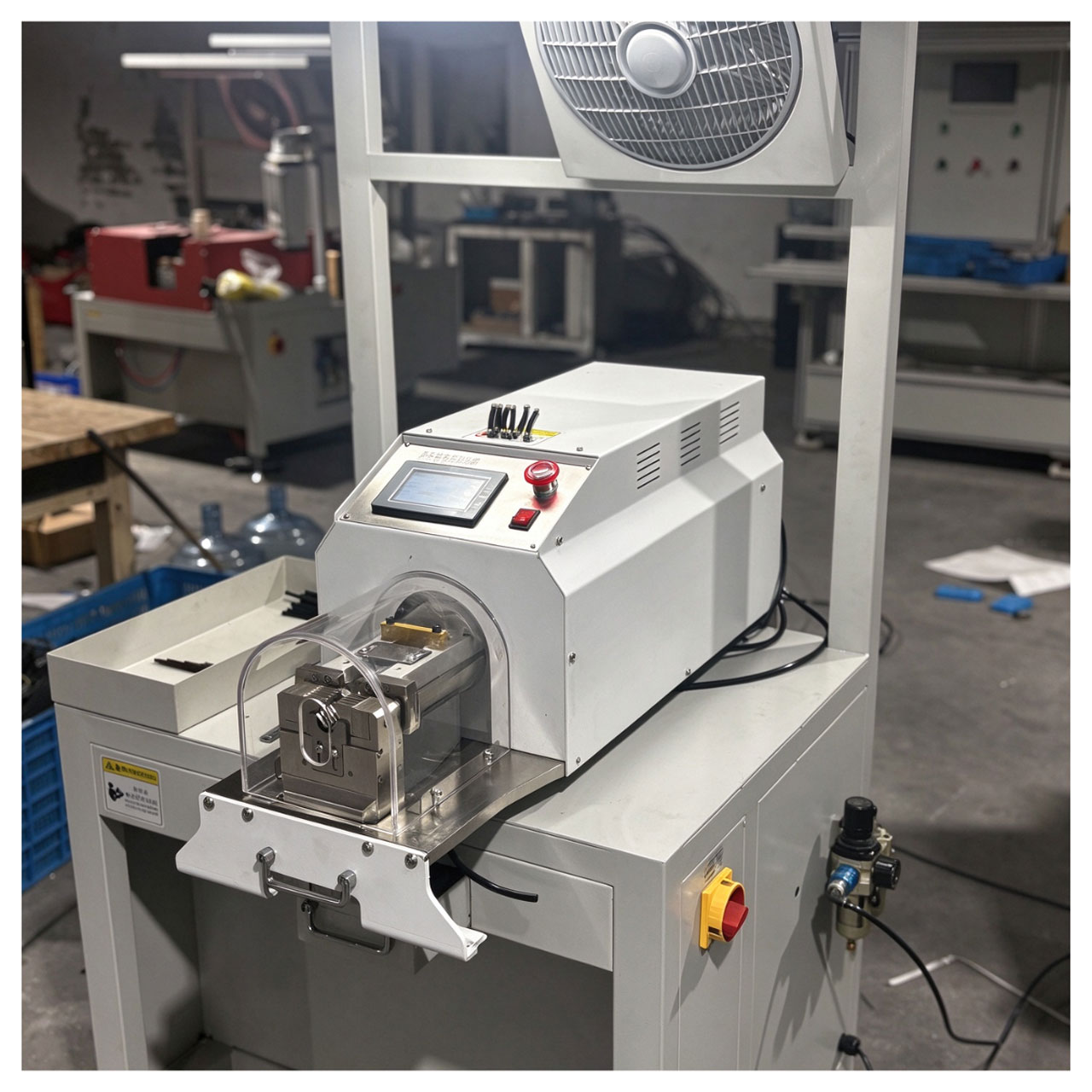

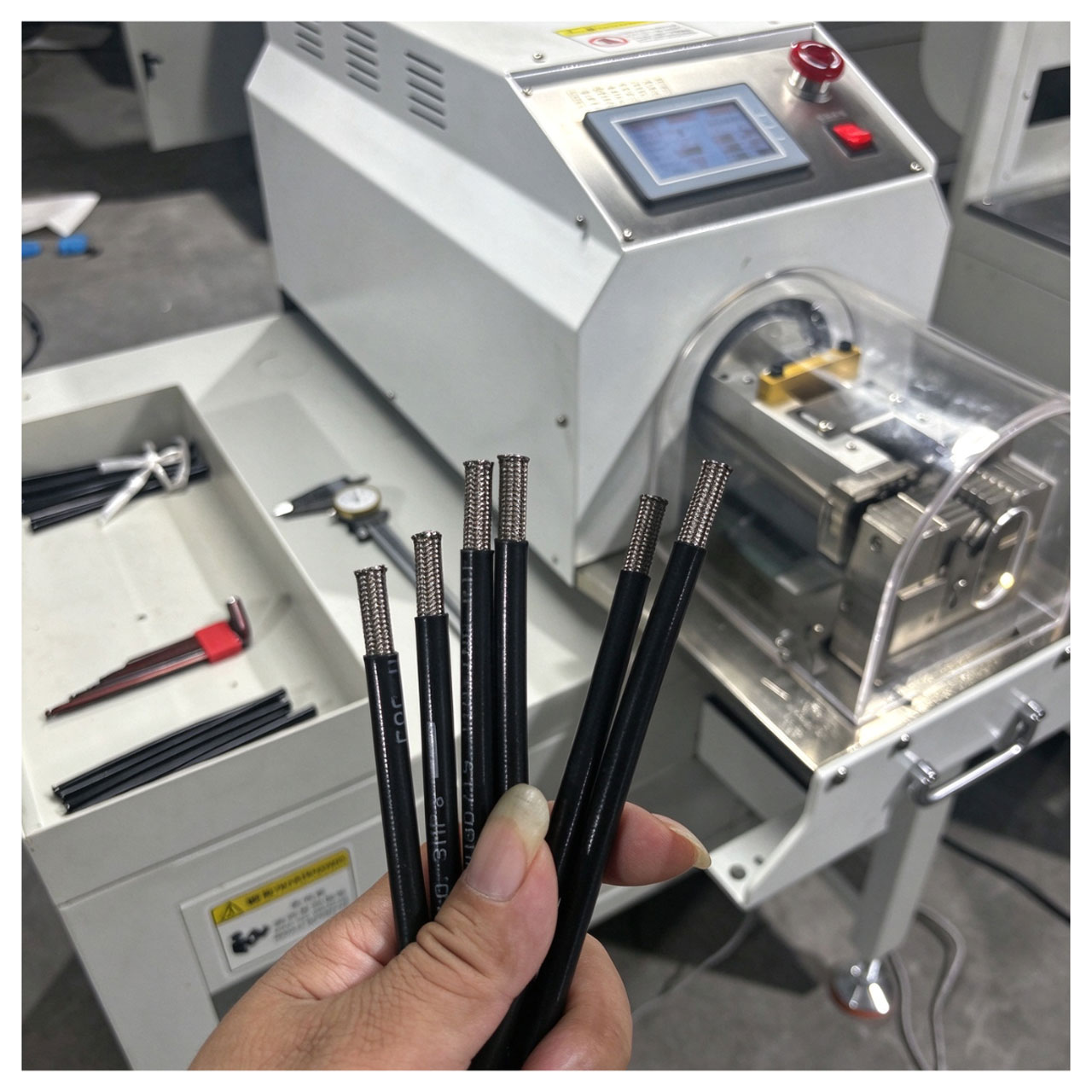

The Motorcycle Brake Hose Peeling Machine is designed for peeling the outer layer of brake hose ends before fitting assembly. It features PLC touch screen control, adjustable peeling length and rotational speed, and a pneumatic loading and unloading mechanism.

The machine is suitable for brake hose processing applications in motorcycle and electric vehicle hose production, subject to workpiece compatibility. Its protective cover and scrap collection box help maintain a cleaner and safer working area.



Technical Specifications

Item	Specification
Model	JR-BPJ
Control System	PLC and Touch Screen
Drive System	Stepper Motor
Loading and Unloading	Pneumatic
Processing Station	Single Station
Peeling Length	Adjustable
Rotational Speed	Adjustable
Rotation Cycles	Adjustable
Rated Power	800 W
Voltage	220 V
Frequency	50–60 Hz
Working Pressure	0.4–0.8 MPa
Safety Features	Acrylic Protective Cover and Scrap Collection Box



Main Features

• PLC touch screen control
• Adjustable peeling length and rotational speed
• Adjustable rotation cycles

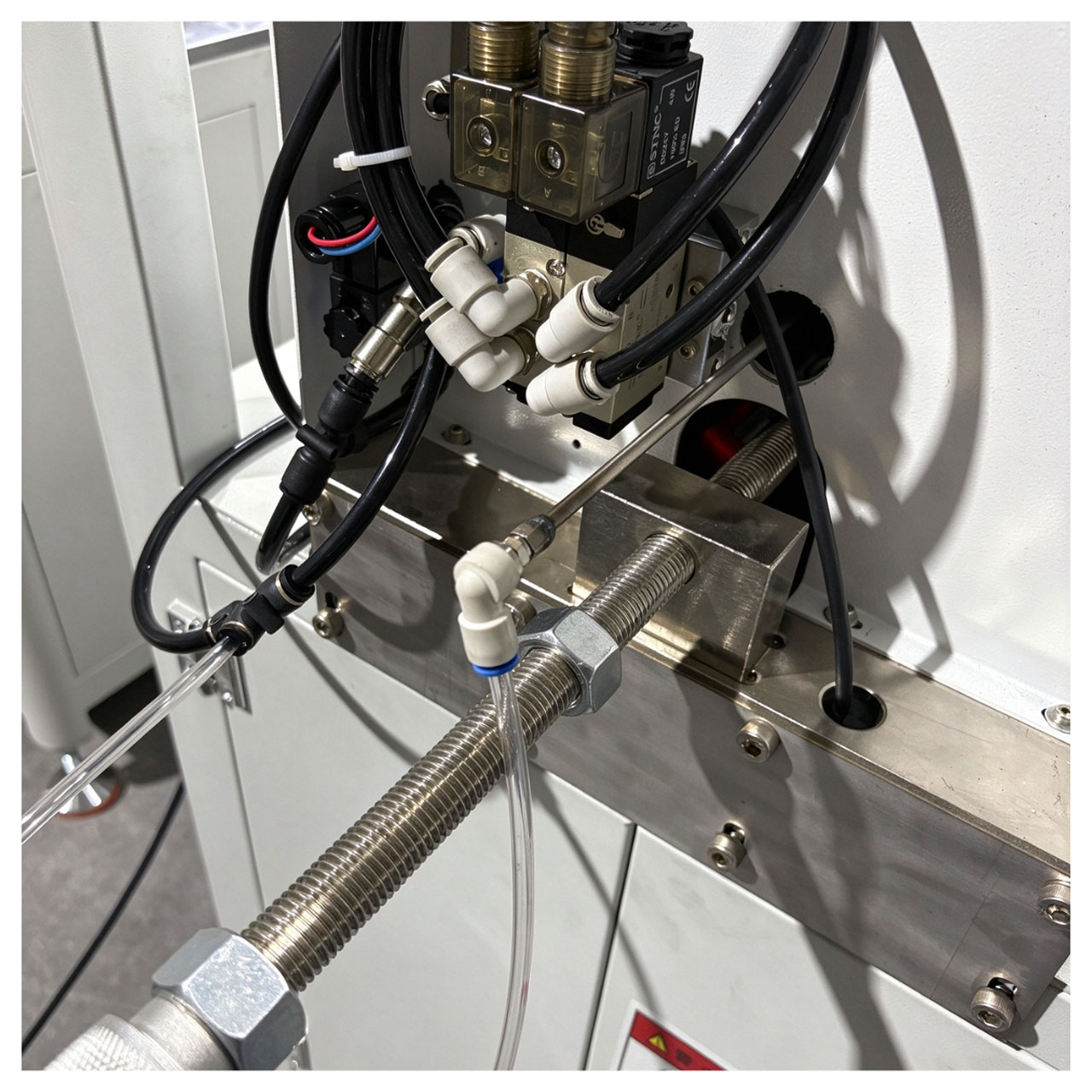

• Pneumatic loading and unloading
• Single-station processing design
• Adjustable fitting positioning
• Protective cover and scrap collection box
