Description

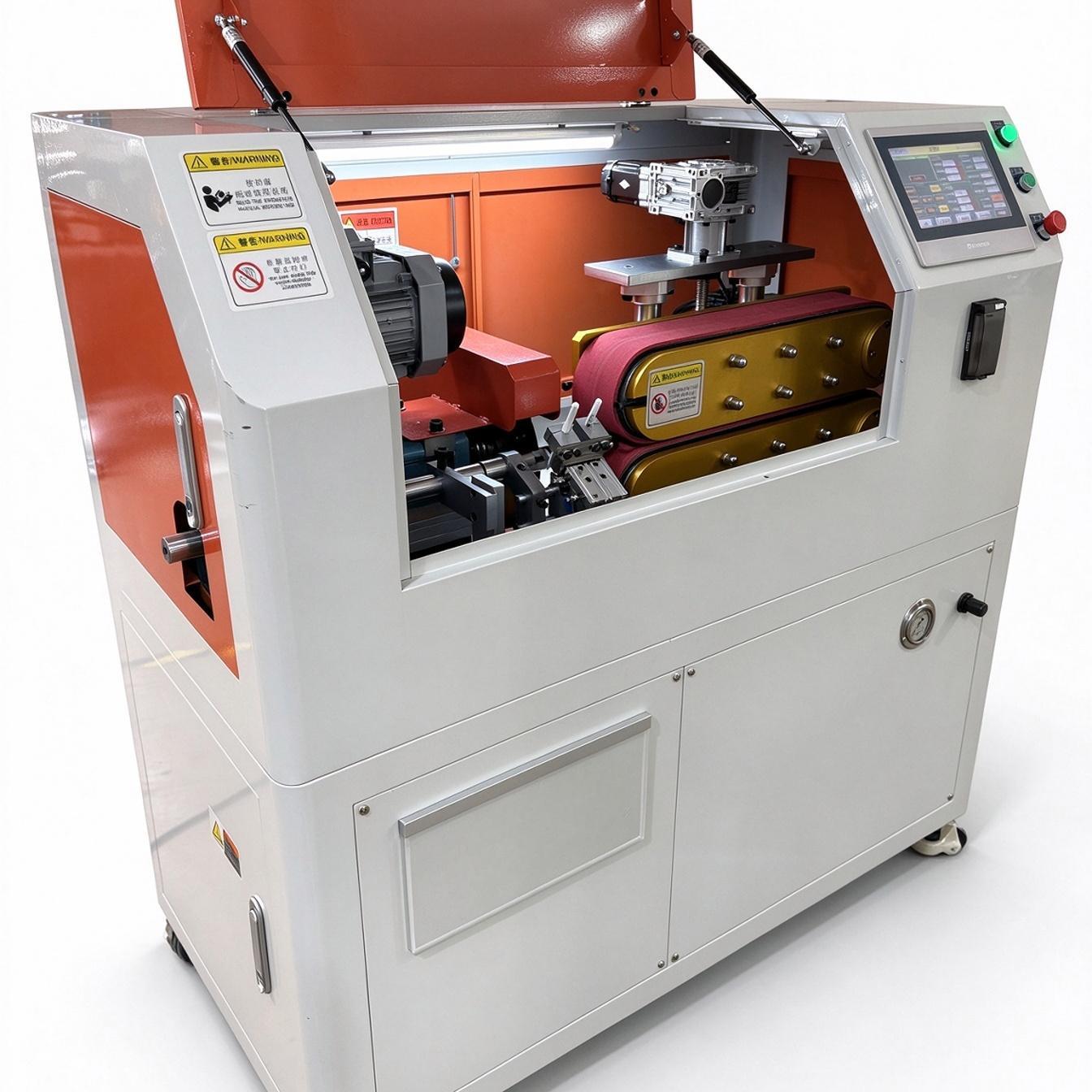

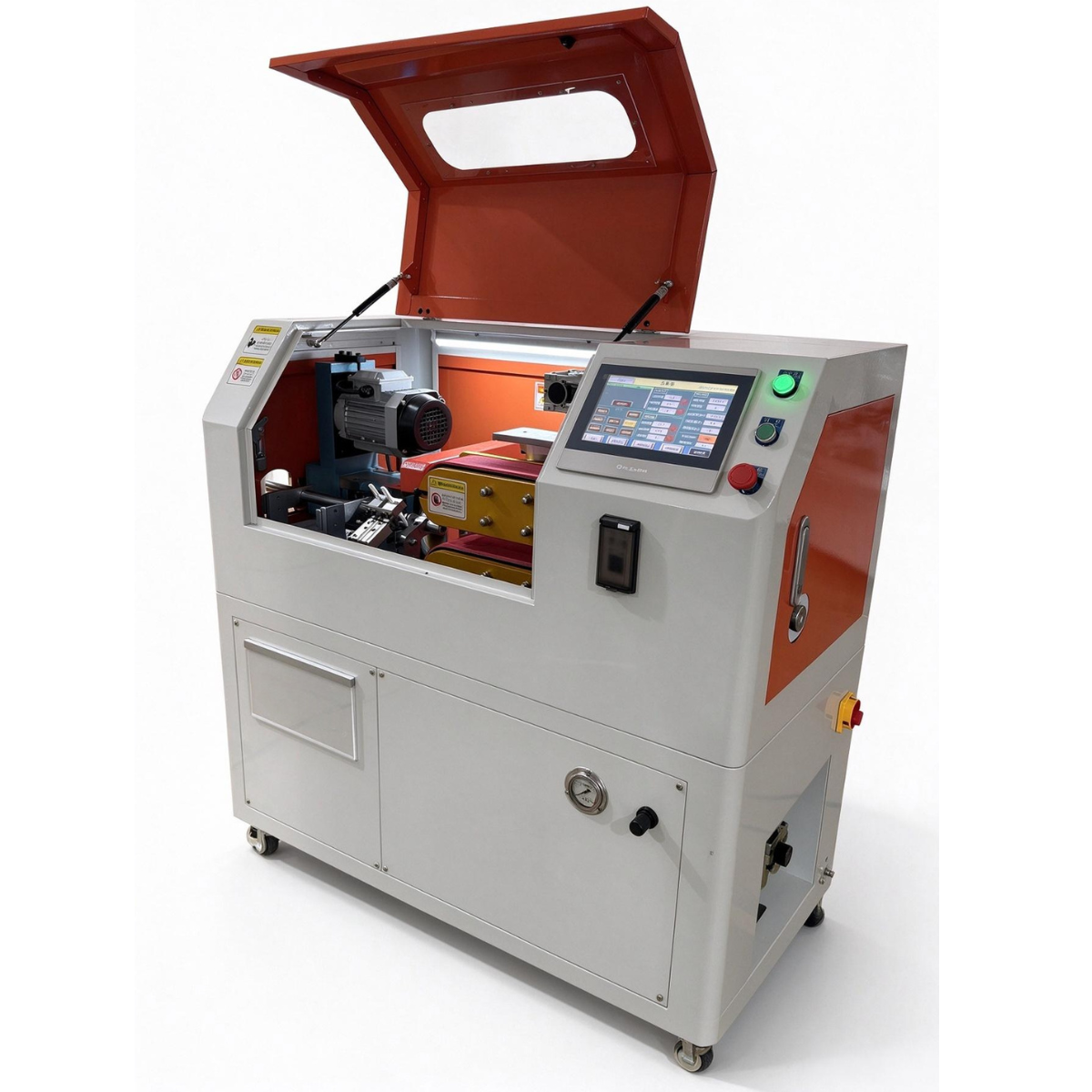

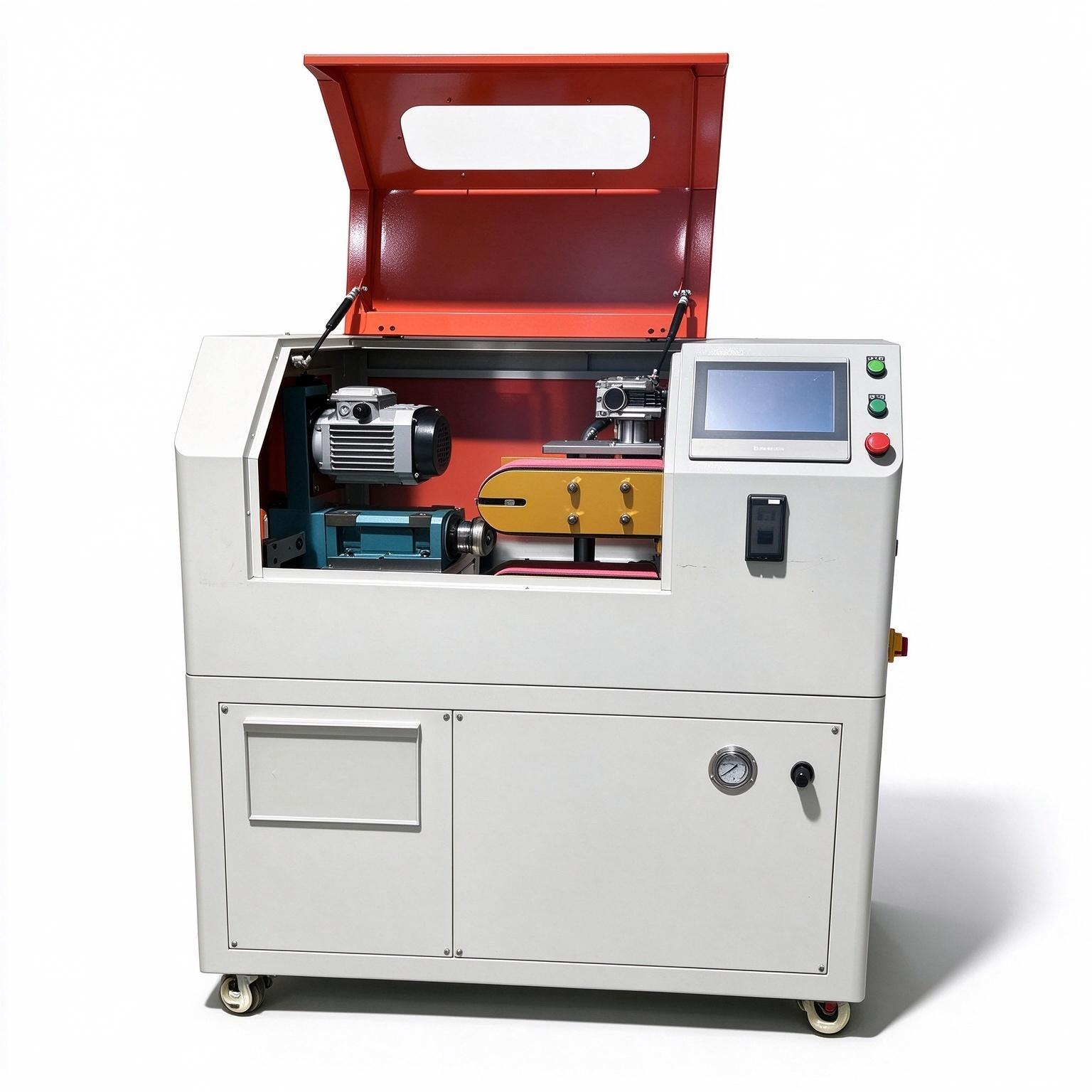

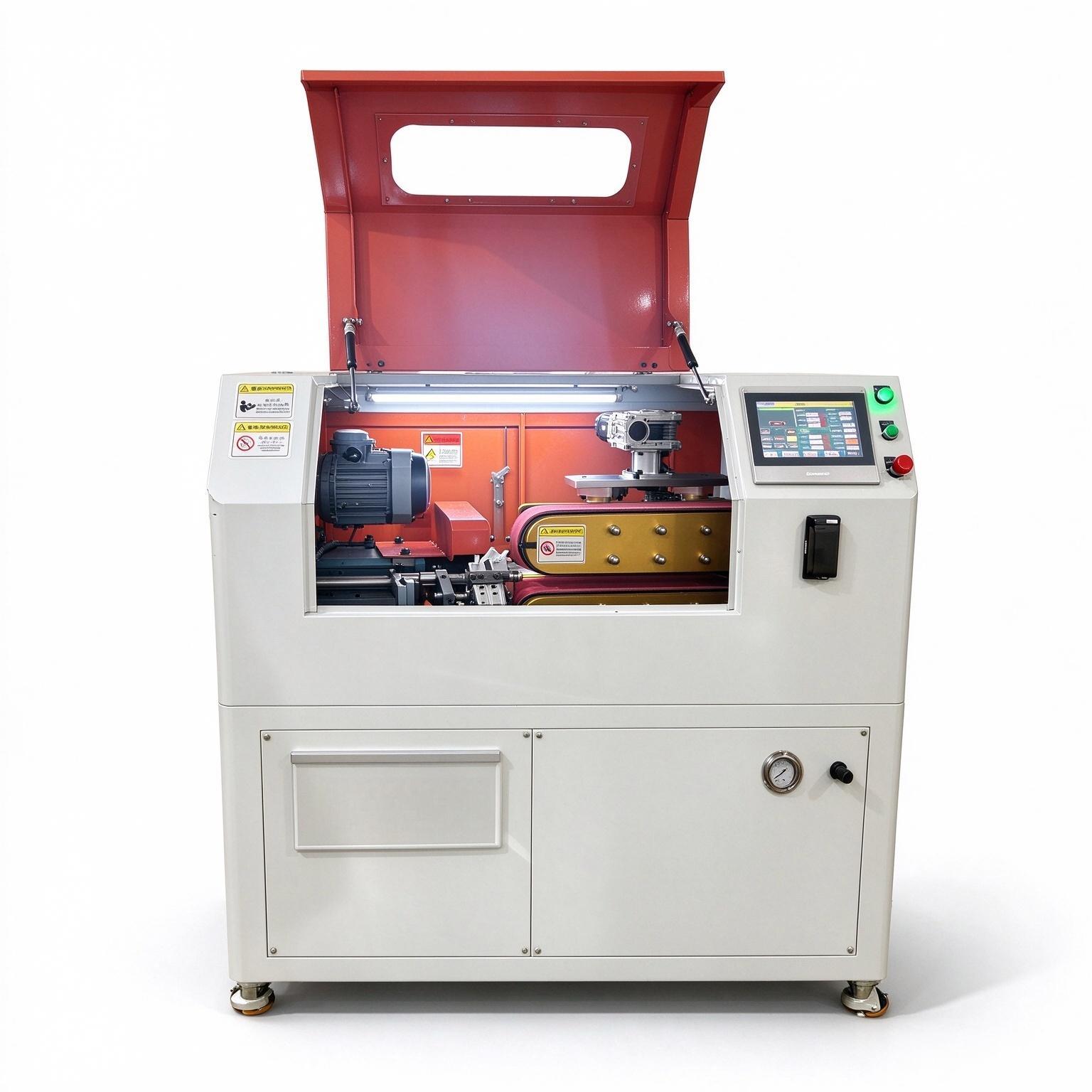

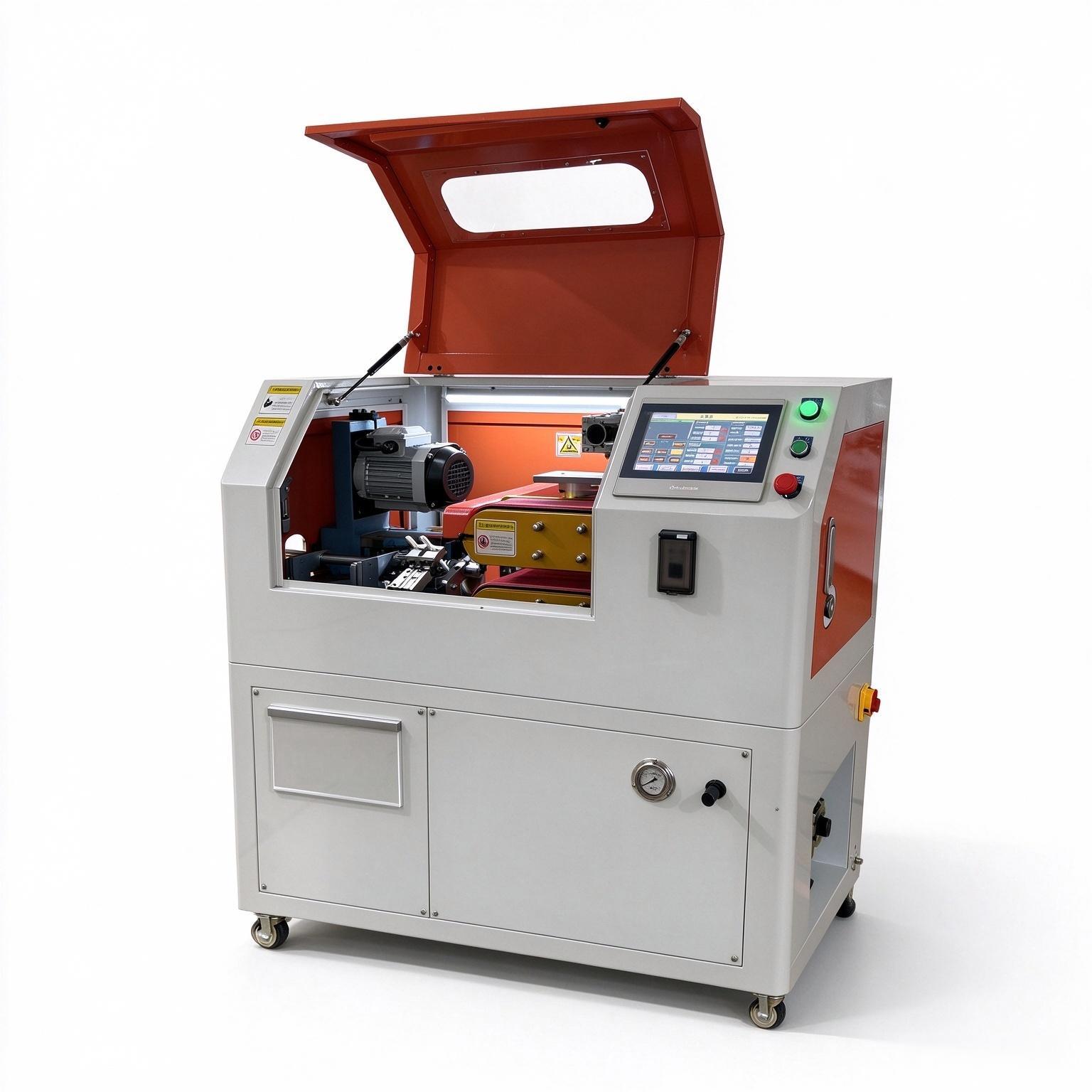

The Brake Hose Cutting Machine with Servo Feeding is designed for cutting motorcycle brake hoses, disc brake hoses, and electric vehicle brake hoses to the required length.

The machine integrates servo-driven feeding, workpiece clamping, and cutting operations. It features PLC touch screen control, adjustable feeding speed and cutting length, and production quantity settings to support consistent hose length preparation.

A protective safety door helps shield the cutting area during operation. The machine can also stop and trigger an alarm when the preset production quantity is reached.

Technical Specifications

Item	Specification
Model	JR-QGJ
Control System	PLC and Touch Screen
Drive System	Servo Motor
Spindle Motor Power	2 kW
Rated Power	4 kW
Operating Voltage	220 V
Frequency	50–60 Hz
Working Pressure	0.4–0.8 MPa
Feeding Speed	Adjustable
Cutting Length	Adjustable
Production Quantity Setting	Supported
End-of-Batch Function	Automatic Stop and Alarm
Safety Protection	Protective Safety Door

Main Features

• Servo-driven feeding and cutting
• PLC touch screen control
• Adjustable cutting length and feeding speed
• Integrated feeding, clamping, and cutting
• Replaceable tooling for compatible hose specifications
• Preset production quantity management
• Automatic stop and alarm at the preset quantity

Applications

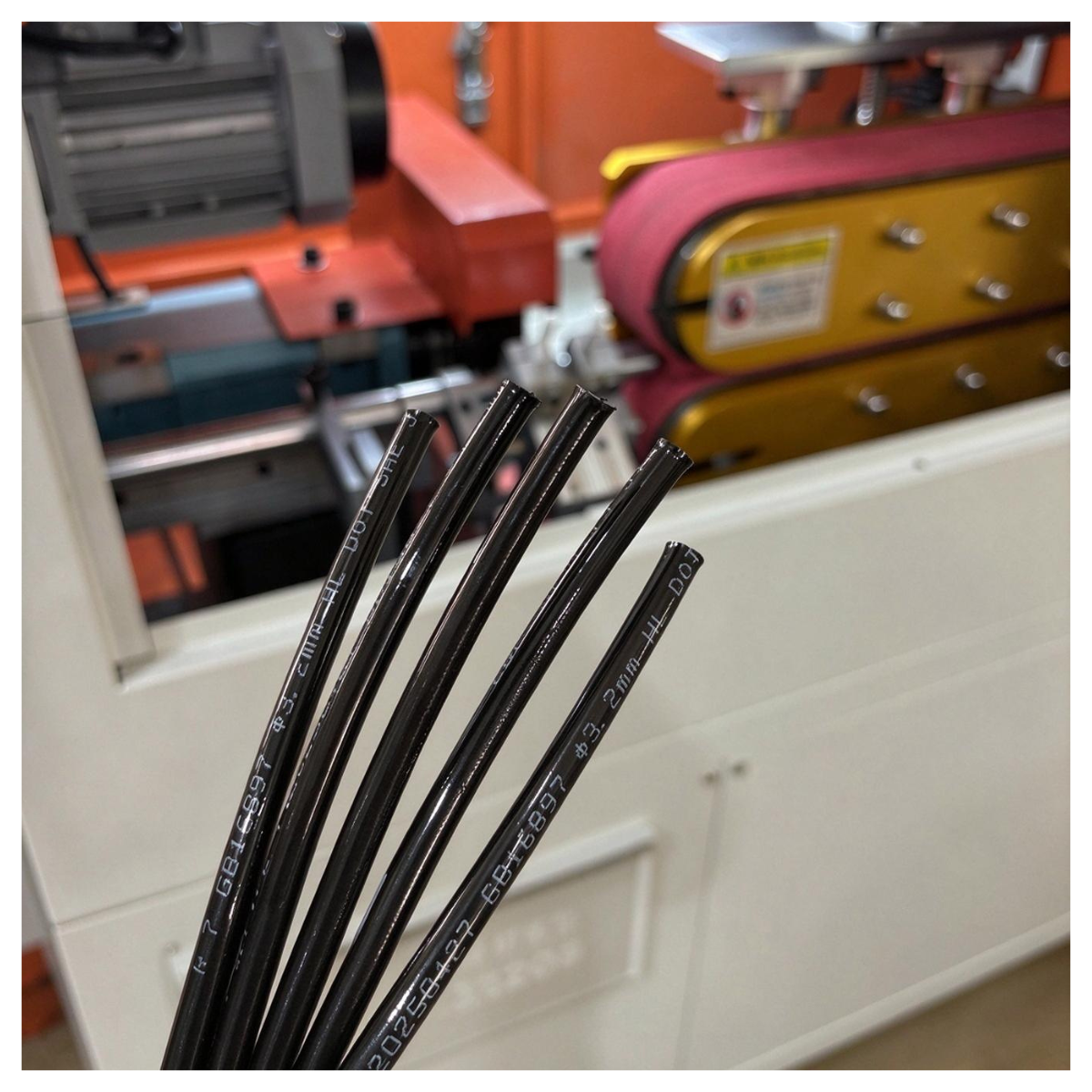

This machine is suitable for brake hose length preparation in motorcycle and electric vehicle hose manufacturing. The adjustable feeding speed and cutting length allow operators to configure processing settings according to different product requirements. The servo feeding system and PLC touch screen control help coordinate the feeding and cutting process for production applications.
